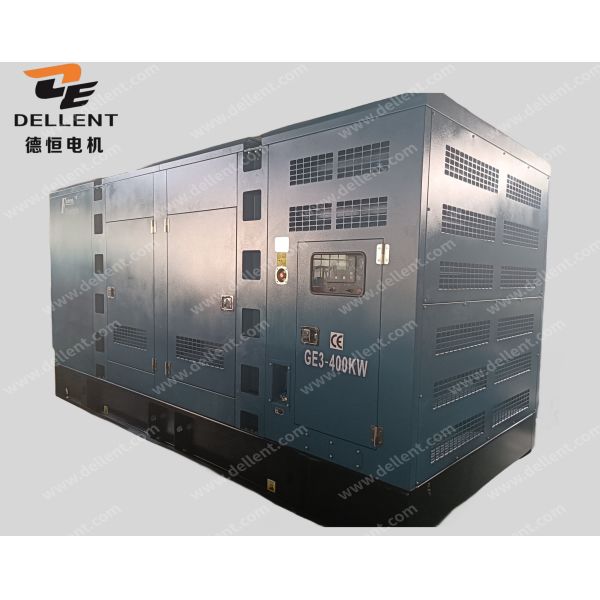

SDEC Engine Brushless Alternator 350kVA Automatic Diesel Generator

Name: SDEC Engine Brushless Alternator 350kVA Automatic Diesel Generator
Brand: DELLENT
Price: 1 USD

Brand Name : DELLENT

Model Number : DE-SC385

Certification : CE/ISO9001

Place of Origin : CHINA

MOQ : 1*20GP

Price : face to face

Payment Terms : L/C, T/T

Supply Ability : 500 PCS PER MONTH

Delivery Time : 30 DAYS FROM DEPOSIT RECEIVED

Packaging Details : PLASTIC WRAP OR PLYWOOD CASE

Name : Automatic Diesel Generator

Engine Model : 6ETAA11.8-G21

Frequency : 50Hz

Engine Brand : SDEC

No. Of Cylinder : 6 Cylinder In Line

Rated Speed : 1500rpm

Voltage : 400V/230V

Warranty : 12 Months

Controller : Automatic Start/Stop

Prime Power : 280kW/350kVA

Standby Power : 308kW/385kVA

Alternator Type : Brushless, Self-excitation

Contact Now

Brushless Alternator 350kVA Automatic Diesel Generator

Ⅰ. PRODUCT DESCRIPTION

350kva Standby Power SDEC Genset Soundproof Engine By 6 Cylinder In Line

Dellent Power supply the standby power 220kVA water cooled diesel generator with SDEC brand diesel engine model6ETAA11.8-G21. The water cooled diesel generator with rated output 350kVA /280kW, standby power385kVA / 308kW.

SDEC Engine Brushless Alternator 350kVA Automatic Diesel Generator

110kVA Diesel Generator Powered by SDEC Diesel Engine:

Model		DE-SC385
Max. Power	kVA	385.0
Max. Power	kW	308.0
Rate Power	kVA	350.0
Rate Power	kW	280.0
Frequency	Hz	50
Rate Voltage	V	380/220V
Rate Current	A	531

SDEC Diesel Engine:

Engine Manufacturer		Shanghai Diesel Engine Co., Ltd.
Engine Brand		SDEC
Engine Model		6ETAA11.8-G21
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocharged and Air to Air Aftercooled
Governor		Electric
Engine Max. Output Power	kW	338
Displacement	L	11.800
Starting Voltage	V	24
Bore	mm	128
Stroke	mm	153
Lubrication Oil Capacity	L	33-41
Compression Ratio		17 : 1
Fuel Tank Capacity	L	450
Fuel Consumption at 100% Load	L/H	72.5

Specification of Control Panel:

Controller Brand	Deepsea
Controller Model	DSE6120
Breaker Brand	Delixi
Breaker Capacity	A	630
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
